Components / Accessories

Components are often used to extend the purchased BCK transport system. Here is a list with item numbers, descriptions and images of the most relevant components.

Article groups

Select an article group here to go to the desired components:

Profiles & Accessories (PA)
Side guide (SG)
Fix nuts (FA)
Round strings (BM)
Motor rollers / motors (EM)
Gearboxes (GB)
Electrical components (EO)
Indirect drive (DU)
Hazard stickers (OS)
Bearings (BE)
Roll (RO)

Profile & Accessories (PA)

Profiles and accessories are used, for example, to extend undercarriages, make constructions from the same profile as the undercarriages. BCK has various components in stock as these are applied daily to the various transport systems produced.

Plastic cover profile M8 T-slot

  • Article code: PA1100115001
  • Material: PP black
  • Standard length: 3,000 mm

Profile 45.45

  • Article code: PA1100060001
  • Material: anodised aluminium
  • Standard length: 6050 mm
  • Download STEP-FILE

Cover cap 45.45

Profile 45.32

  • Article code: PA1100240001
  • Material: anodised aluminium
  • Standard length: 6050 mm
  • Download STEP-FILE

Cover cap 45.32

Profile 90.45

  • Article code: PA1100070001
  • Material: anodised aluminium
  • Standard length: 6050 mm
  • Download STEP-FILE

Cover cap 90.45

Profile telescopic 50.67.5

  • Article code: PA1100090001
  • Material: anodised aluminium
  • Standard length: 6050 mm
  • Download STEP-FILE

Plastic cover 50x67.5

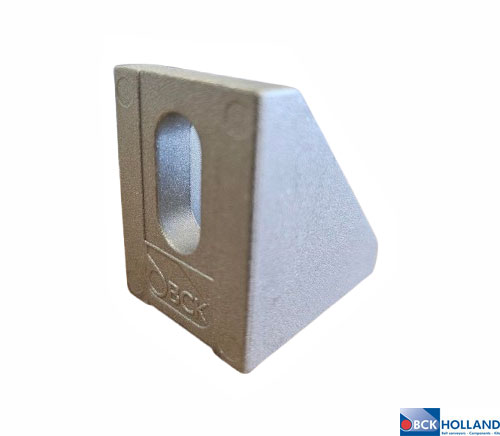

Corner piece 28.38.38 M8

  • Article code: PA1200030001
  • Material: aluminium
  • Dimensions: 28 x 38 x 38 mm
  • Download STEP-FILE

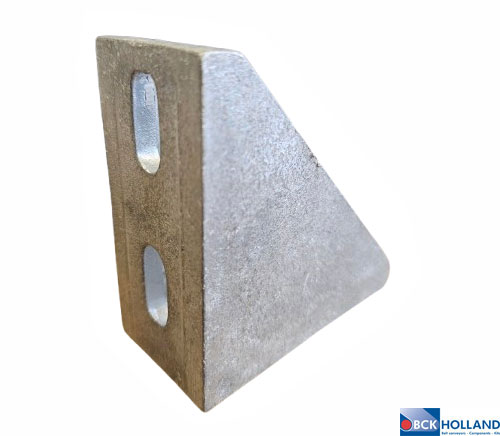

Corner piece 36.77.77 M8

  • Article code: PA1200040001
  • Material: aluminium
  • Dimensions: 36 x 77 x 77 mm
  • Download STEP-FILE

Coupling plate 45.45.15

  • Article code: PA1300030001
  • Material: aluminium
  • Dimensions: 45 x 45 x 15 mm
  • Download STEP-FILE

Footplate 45.45 closed

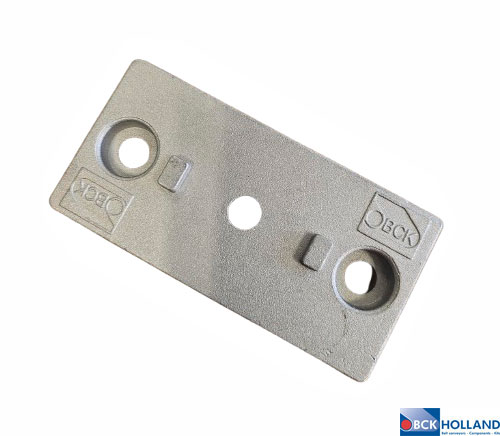

Coupling plate 45.90.12.5

  • Article code: PA1300040001
  • Material: aluminium
  • Dimensions: 45 x 90 x 12.5 mm
  • Download STEP-FILE

End plate 45.90.15 closed

  • Article code: PA1500020001
  • Material: aluminium
  • Dimensions: 45 x 90 x 15 mm
  • Download STEP-FILE

End plate 45.90.15 with M16 threaded hole

  • Article code: PA1500030001
  • Material: aluminium
  • Dimensions: 45 x 90 x 15 mm
  • Download STEP-FILE

Side guide (SG)

Side guides are used to keep products on the running surface or guide them to another position. Various components are kept in stock by BCK because they are used daily on the various conveyor systems that are produced.

Side guide GR50

  • Article code: SG1100010001

  • Material: anodised aluminium + bulb white UHMWPE (work material S1000 / PE1000)
  • T-slot suitable for M8
  • Standard length: 3,000 mm

  • Download STEP-FILE

Side guide GR55

  • Article code: SG1100020001

  • Material: anodised aluminium + flat white UHMWPE (working material S1000 / PE1000)
  • T-slot suitable for M8
  • Standard length: 3,000 mm

  • Download STEP-FILE

End fixing side guide 18 mm

Side guide GR40

  • Article code: SG1100030001

  • Material: anodised aluminium
  • T-slot suitable for M8
  • Standard length: 6,050 mm

  • Download STEP-FILE

Side guide C40 GREEN

  • Article code: SG1100040001 (GREEN)

  • Material: flat HMPE (working material S500 / PE500) in the colour green
  • Standard length: 25,000 mm

  • Download STEP-FILE

Side guide C40 BLACK

  • Article code: SG1100041001 (BLACK)

  • Material: flat HMPE (working material S500 / PE500) in the colour black
  • Standard length: 25,000 mm

  • Download STEP-FILE

Side guide C40 BLUE

  • Article code: SG1100042001 (BLUE)

  • Material: flat HMPE (working material S500 / PE500) in the colour blue
  • Standard length: 25,000 mm

  • Download STEP-FILE

Side guide C102 GREEN

  • Article code: SG1100040501 (GREEN)

  • Material: flat green HMPE (working material S500 / PE500)
  • Standard length: 6,000 mm

  • Download STEP-FILE

Side guide C102 BLACK

  • Article code: SG1100041501 (BLACK)

  • Material: flat black HMPE (work material S500 / PE500)
  • Standard length: 6,000 mm

  • Download STEP-FILE

Side guide GR60 GREEN

  • Article code: SG1100050001 (GREEN)

  • Material: anodised aluminium + flat HMPE (working material S500 / PE500) (GREEN)
  • Standard length: 6,050 mm

  • Download STEP-FILE

Side guide GR61 BLACK

  • Article code: SG1100051001 (BLACK)

  • Material: anodised aluminium + flat HMPE (working material S500 / PE500) (BLACK)
  • Standard length: 6,050 mm

  • Download STEP-FILE

Side guide GR62 BLUE

  • Article code: SG1100052001 (BLUE)

  • Material: anodised aluminium + flat HMPE (work material S500 / PE500) (BLUE)
  • Standard length: 6,050 mm

  • Download STEP-FILE

Side guide GR100 GREEN

  • Article code: SG1100050501
  • Material: anodised aluminium + flat GREEN HMPE (working material S500 / PE500)
  • Standard length: 6,000 mm
  • Download STEP-FILE

Side guide GR101 BLACK

  • Article code: SG1100051501
  • Material: anodised aluminium + flat BLACK HMPE (working material S500 / PE500)
  • Standard length: 6,000 mm

  • Download STEP-FILE

Central fixing side guide 40 mm

  • Article code: SG1400020002 (incl. fixing materials*)
  • Material: plastic

  • Download STEP-FILE

End fixing side guide 40 mm

  • Article code: SG1400010002 (incl. fixing materials*)
  • Material: plastic

  • Download STEP-FILE

Profile side guide 40 x Ø12-8 mm

  • Article code: SG1100070001
  • Material: anodised aluminium
  • Standard length: 6,100 mm

  • Download STEP-FILE

Edge seal side guide Ø5 - 55

  • Article code: SG1100070501
  • Material: PVC black (other materials on request)
  • Standard length: 50,000 mm

  • Download STEP-FILE

Side guide 17 mm sphere plastic/ stainless steel

  • Article code: SG1100151001
  • Material: stainless steel (AISI304) + white PE bulb
  • Standard length: 3,000 mm

  • Download STEP-FILE

Side guide 40 mm flat plastic/ stainless steel

  • Article code: SG1100150001
  • Material: stainless steel (AISI304) + flat white PE
  • Standard length: 3,000 mm

  • Download STEP-FILE

Clamping piece M8 for plastic/ stainless steel side guide 17 / 40 mm

  • Article code:  SG1400110001
  • Material: stainless steel (AISI304)

  • Download STEP-FILE

Side guide holder GMB10 AR

  • Article code:  SG1200010002 (incl. fixing materials*)
  • Material: plastic
  • Equipped with anti-rotation (AR) cam
  • Download STEP-FILE

Side guide holder GMB15 SGCT

  • Article code: SG1200021003 (incl. fixing materials*)
  • Material: steel coated
  • Download STEP-FILE

Side guide holder 150.25.03

  • Article code: SG1200050002 (incl. fixing materials*)
  • Material: steel coated 3 mm

  • Download STEP-FILE

Side guide holder GMB20 toggle

  • Article code: SG1200030002 (incl. fixing materials*)
  • Material: plastic
  • Suitable for Ø15 mm shaft

  • Download STEP-FILE

Side guide holder GMB30 star knob

  • Article code: SG1200040002 (incl. fixing materials*)
  • Material: plastic
  • Suitable for Ø15 mm shaft
  • Contains a rotating head for diagonal adjustment

  • Download STEP-FILE

Vertical adjustment side guide SGCT

  • Article code: SG1100065003 (incl. fixing materials*)
  • Material: steel coated
  • Suitable for M8

  • Download STEP-FILE

Side guide GMB30 star knob

Axis adjustable lateral guide Ø15 mm

  • Length: 100 mm -

    Article code: SG1300010002 (incl. fixing materials*)

  • Length: 150 mm -

    Article code: SG1300020002 (incl. fixing materials*)

  • Length: 200 mm -

    Article code: SG1300030002 (incl. fixing materials*)

  • Length: 250 mm -

    Article code: SG1300040002 (incl. fixing materials*)

  • Length: 300 mm -

    Article code: SG1300050002 (incl. fixing materials*)

  • Length: 400 mm -

    Article code: SG1300060002 (incl. fixing materials*)

  • Length: 500 mm -

    Article code: SG1300070002 (incl. fixing materials*)

  • Material: stainless steel (AISI304)

  • Optional: shaft fitted with ruler for fine adjustment

  • Download STEP-FILE

End stop bracket N60 bearing plate R

End stop bracket N60 bearing plate L

End stop bracket GR40 SGCT

Fix nuts (FA)

Fix nuts are used to mount profiles or accessories to BCK transport systems with an aluminium frame. Fix nuts are in stock because they are used daily on the various conveyor systems produced.

Square nut with fixation (fix nut) for M8 T-slot

Motor rollers / motors (EM)

Motor rollers are applied in RD50 roller conveyors. BCK Holland has a number of standard sizes in stock. BCK Holland also has various three-phase motors in stock that are applied to belt conveyors and mattop conveyors.

Motor roller Interroll EC5000 i=30

Motor roller tapered Interroll EC5000 i=30

Motor extension cable Interroll EC310 2m

Electric motor 230/400V

Electric motor 230V with integrated frequency converter

  • Electric motor 4P 0,18kW 63 Equipped with NeriDrive Junior version T
    Article code: EM5150630180

  • Electric motor 2P 0,37kW 63 equipped with NeriDrive Junior extra small version
    Article code: EM5150630370

  • Download STEP-FILE

Gearboxes (GB)

BCK Holland has a number of standard gearboxes that are applied to belt conveyors and mattop conveyors.

Gearbox SW40

Gearbox cover SW040

Fa flange SW040

Electrical components (EO)

BCK Holland stocks a number of electrical components applied to belt conveyors and mattop conveyors.

MBS plastic cabinet, +emergency-off mushroom button, surface-mounted, IP-65

Motor protection PKZM01

Emergency switchboard Schneider 2NC

Frequency inverter IP66 0.75 kW

Reflectorband scotchlight H50 mm

Photocell beam diffuse 400

Photocell with reflector M18 connector red polarised

Photocell with reflector M18 2m cable red polarised

Photocell diffuser M18 connector red polarised

Photocell diffuser M18 2m cable red polarised

Drivecontrol IP20

Zonecontrol IP20

Mounting bracket cover photocell M18

Indirect drive (DU)

BCK Holland stocks a number of indirect drives applied to belt conveyors and mattop conveyors.

Cover N60 D20

Chain N60 D20 L400

Sprocket N60 D20

Rollers (RO)

BCK Holland has a number of standard rollers in stock that are applied to powered roller conveyors and gravity roller conveyors.

Load roller Ø50x2.8 plastic grey

Load roller Ø50x1.5 steel zinc-plated with 2x groove

Pneumatic ball jar 1’ dia. Carbon steel

Diabolo Ø30x32

Bearings (BE)

Every conveyor system has bearings. BCK Holland has various bearings in stock and some are shown below.

Bearing plate N60 R alu-incl. bearing

Bearing plate N60 L alu-incl. bearing

Bearing plate extension N60 LSTW R

Bearing plate extension N60 LSTW L

Cover cap bearing plate N60 fitted with hole

Cover bearing plate N60

Round strings (BM)

BCK Holland has a number of round strings in stock that are applied to belt conveyors and mattop conveyors.

Round string Ø4.8

Round string Ø4.8 DS50 ntrl with hook

Round string Ø5 Curve green

Round belt Ø5.3 red

Hazard stickers (OS)

Forewarned is forearmed! BCK Holland stocks hazard stickers.

Pictogram rotating belt

General hazard pictogram

Pictogram rotating gear

Electrical hazard pictogram
